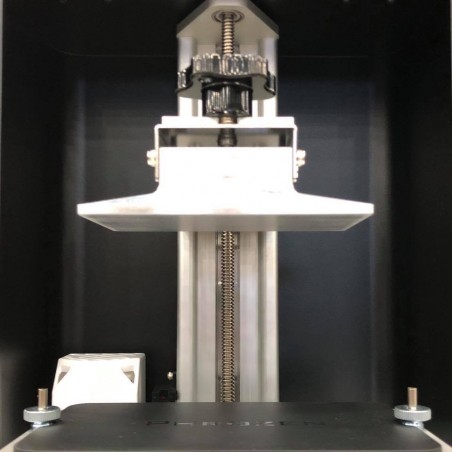

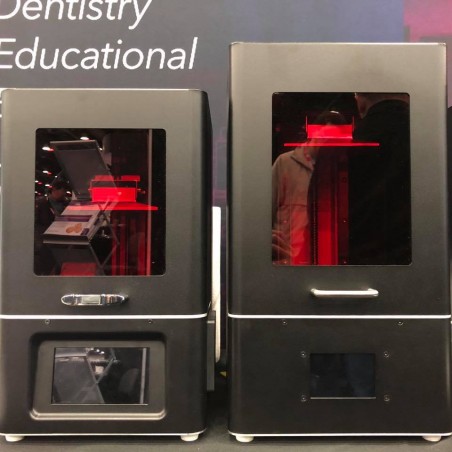

Phrozen 4K

€1,349.00

Print technology: LCD/DLP 4K  _ Resin

Print volume: 120x68x170 mm

Screen Resolutiont: 4K

HD 3840x2160 5.5 Inch LCD

Led power: 50 W - 405 nm

Led typer: Para Led V2

Resolution Z: 0.010 - 0.10 mm

Resolution X / Y: 31 microns

Recommended minimum thickness of the surfaces:> 0.35 mm

Connectivity: Eterneth, USB - Management software:Open

Printable materials: Resins 405 nm

INSTRUCTIONS

PZSLICE

Notify me when available
Quantity
Out of stock

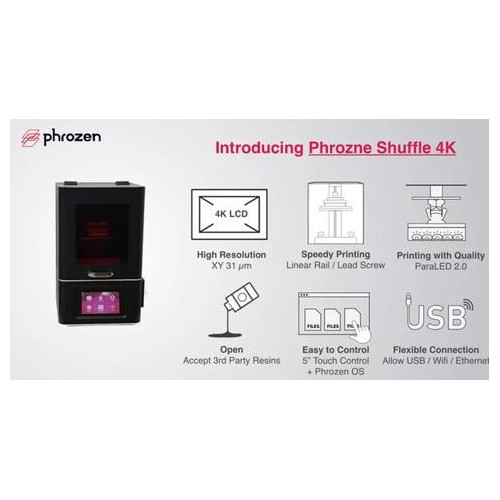

Phrozen Shuffle 4K High Resolution LCD 3D printer!

4K Resolution HD 3840x2160 5.5 Inch LCD

ParaLED 2.0 Matrix Optical Engine

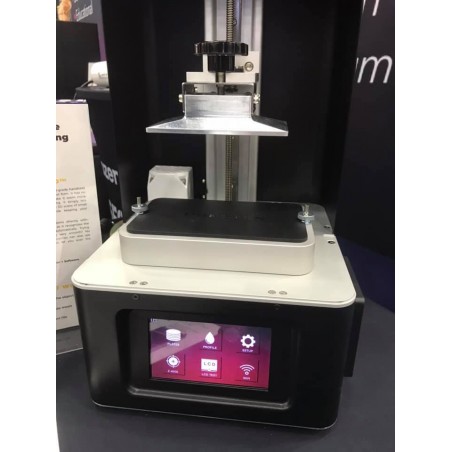

5" capacitive touch screen with Phrozen OS

In SLA system, light intensity, wavelength, and optical path highly influences printing quality and efficiency. Conventional LCD 3D printer tends to use thumb-size COB LED with Fresnel film. It is still not good enough for overall uniformity, especially for edge area. Their major target is to reduce the cost. To further improve it, Phrozen's ParaLED 2.0 Optical Engine uses LED array matrix with the size same as LCD panel. Moreover, we narrow down the LED emission angle to make it as parallel as possible. That way, we can increase the efficiency that light pass through LCD and, therefore, improve printing speed and quality.

Phrozen 4k
